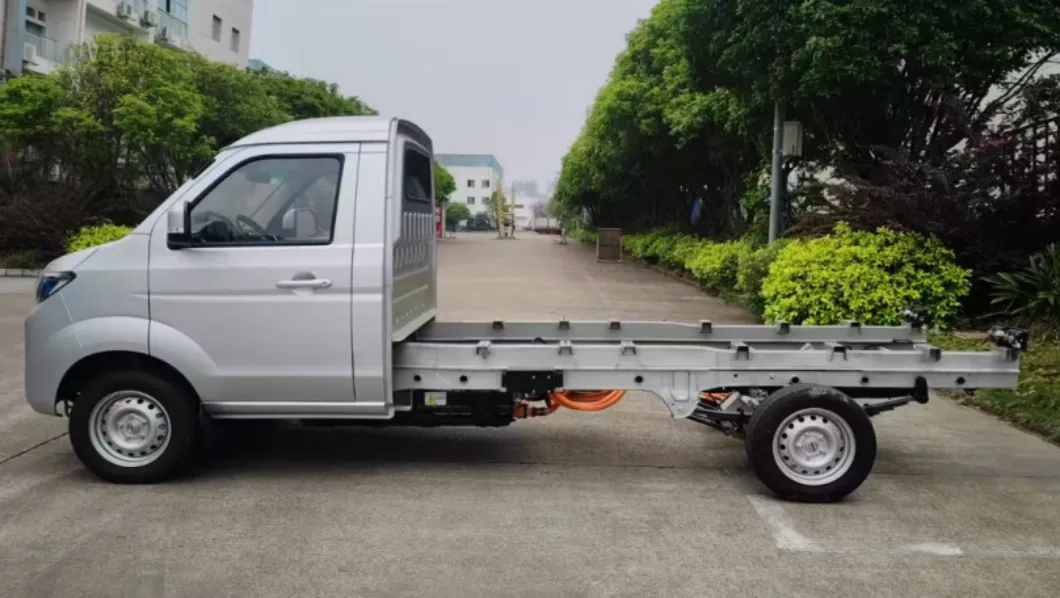

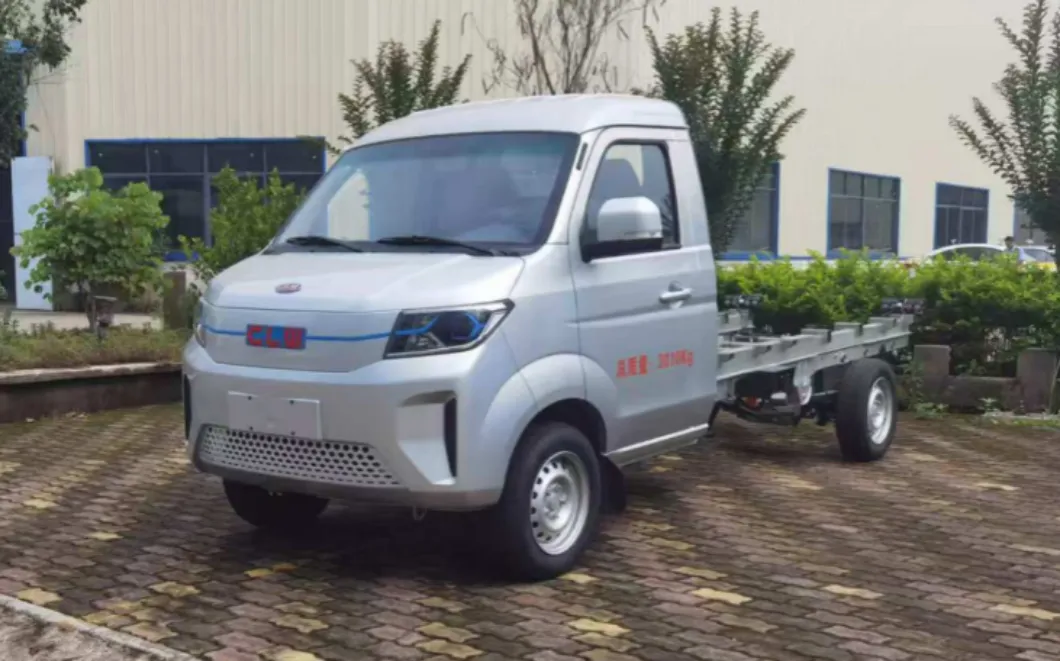

The CL1031 chassis is a 3T pure electric light truck chassis developed by Chengli Automobile, with a maximum
gross mass of 3,010 kilograms. The chassis length is 4960mm, and it is equipped with a 18-minute ultra-fast
charging liquid-cooled lithium iron phosphate battery from CATL, with the battery placed in the middle and at the front.

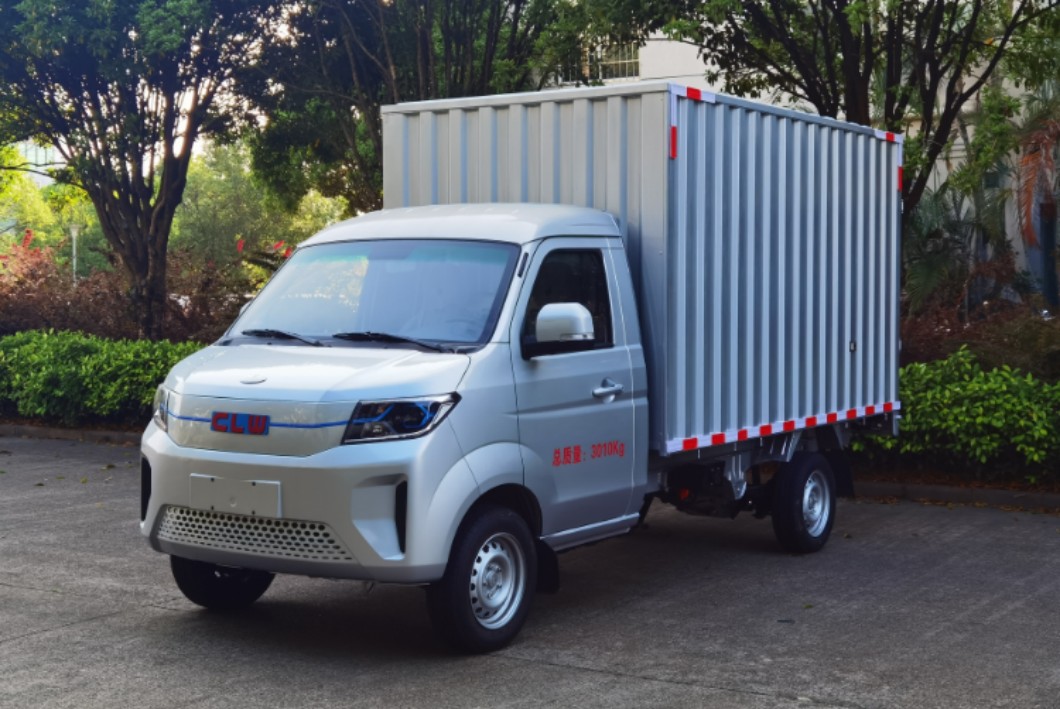

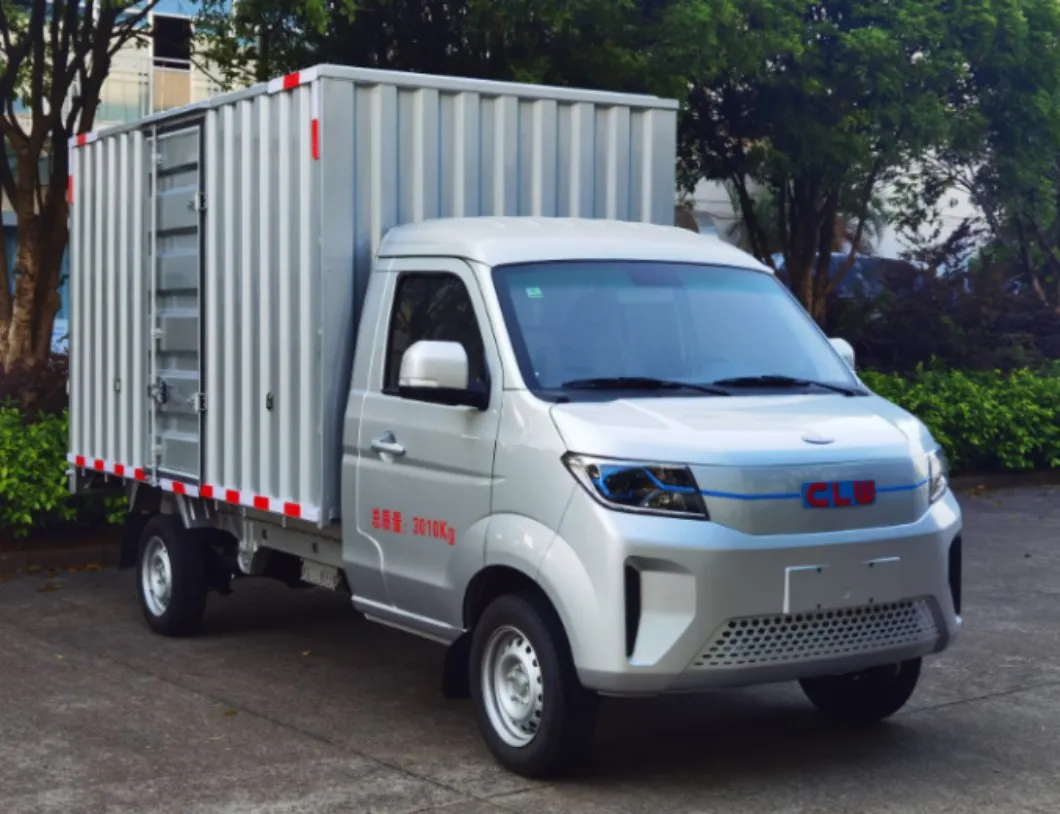

The chassis is suitable for modification of logistics vehicles, refrigerated trucks, sanitation vehicles, rescue service vehicles,
ice cream trucks, street vending vehicles, etc.
| Project 项目 | "Content 内容 | Parameter 参数 |
| Basic parameters of the chassis 底盘基本参数 | Overall vehicle dimensions 整车尺寸 | 4969×1650×1950 |
| Total mass 总质量 | 3010kg | |
| Preparation quality 整备质量 | 1200kg | |
| Wheelbase 轴距 | 3245mm | |
| Tire specification 轮胎规格 | 175/70R14C | |
| air conditioner 空调 | Electric variable speed, warm air 电动变频、暖风 | |

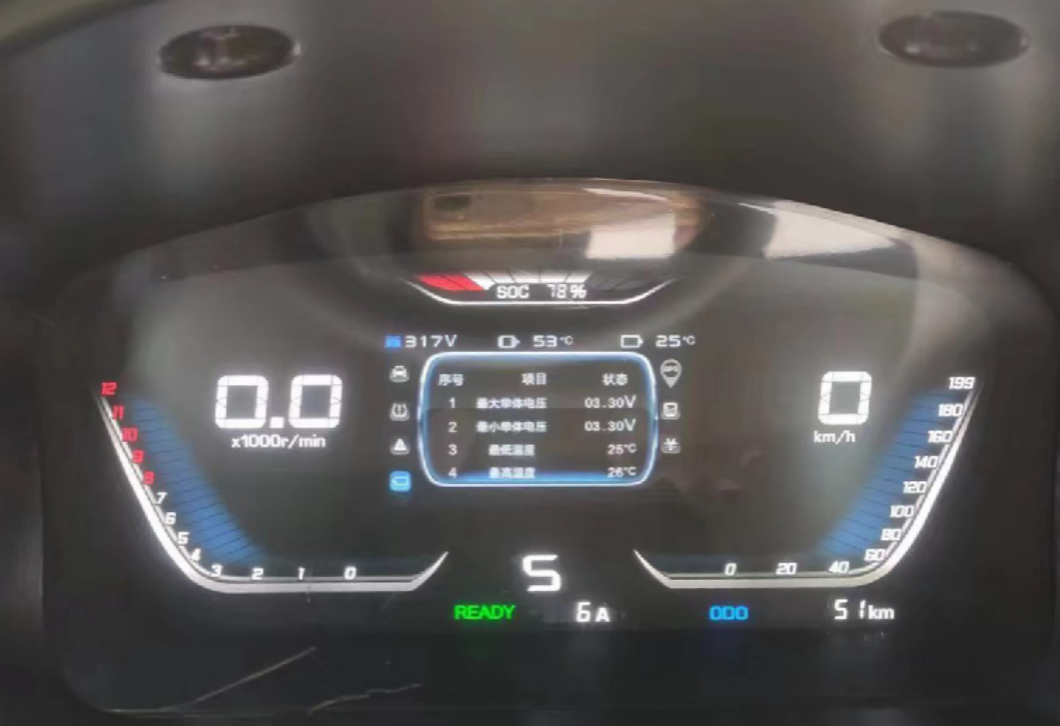

| Instrument 仪表 | 7-inch, full LCD 7英寸、全液晶 | |
| Braking 制动 | Front disc, rear drum, ABS 前盘后鼓、ABS | |
| Shift gears 换挡 | Knob-type gearshift handle 旋钮式换挡手柄 | |
| Doors and Windows 门窗 | Electric windows, remote key 电动门窗、遥控钥匙 | |
| Turn 转向 | Electric power steering 电动助力转向 | |
| Driving parameters 驱动参数 | Motor type 电机类型 | Permanent magnet synchronous motor 永磁同步电机 |
| Rated/maximum power 额定/最大功率 | 30/60kw | |
| Rated/maximum speed 额定/最大转速 | 3000/10000kw | |
| Cooling method 冷却方式 | Liquid cooling 液冷 | |
| Parameters of power battery 动力电池参数 | Battery type 电池类型 | Lithium iron phosphate battery 磷酸铁锂电池 |
| Rated voltage 额定电压 | 334.88V | |
| Rated energy 额定能量 | 41.86kwh | |
| Manufacturer 生产厂家 | Nidea Technology 宁德时代 | |
| Charging method 充电方式 | 18-minute fast charging 18分钟快充 | |
| Others 其它 | Select reversing radar, optional reversing camera, and mobile charger 选倒车雷达、选装倒车影像、移动充 | |








FAQ
Q1. Is your company a factory or a trading company?
A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production
base in Suizhou City, China.
Q2. What are your payment terms?
A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.
Q3. What are your delivery terms?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.
Q5. Can you customize the products according to my requirements?
A: Yes. We have a professional R&D team, and we can produce products exactly as you require.
Q6. What is the price of your products?
A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price also depends on your special needs.
To know the exact price, please contact us!
Q7. Do you test all goods before delivery?
A: Yes, we do 100% testing before delivery.
Q8: What seRVices can I get from you?
A: We provide lifelong tracking services and original accessories for all products. You only need to pay the ex-factory price for the accessories and the
shipping fee. Meanwhile, we offer free remote training and technical support to guide you in repairing the products.
